Re-embed the Sketchup Model

Though I am pretty sure I embedded the model with the submission, I got no idea why it has gone.

Here is the link to my model and the update date could show I did not submit after due.

https://3dwarehouse.sketchup.com/model.html?id=u28d17dbd-26c5-4895-a8ec-3c48755b9ffe

https://3dwarehouse.sketchup.com/model.html?id=u3f3afed4-fd87-4e8d-b953-ea1e8ff70fb4


And Also I embed it again.

So sorry for the mess Jacky.

exp3 dropbox

just noticed the uploading was missing
https://www.dropbox.com/sh/d63lsw36bkrgkbz/AABu065mZn2d7wKtayucNeYda

EXP3 FInal Submission

THE BRIDGE

Intro

Textures

Pespectives

Process Captures





Final Developed Model

Moving Elements

1. The moving shield, keep the sunlight in or out.

2. The moving roof part, give more warm or vatilation.

Sketchup Model

Keep drafting

DraftDraftDraftDraftDraftDraftDraft

The Mashup

Constructivist architects use glass and steel to establish abstract geometric shapes and functional machine parts building a sense of movement. Suggesting the idea of humanity's collectivism, diverse structural elements would be arranged. In order to avoid the buildings which seem messy, Using visual hierarchy could help which create focal points by positioning their priority within a concept as a whole.Key elements, graphic communication and the importance from most to least have to be taken into consideration. Nevertheless, Failure is not acceptable for structural engineering hence an extremely low rate of failure must be assured in design process in other words, imagination should not make a building out of control.

By using complex structural elements, abstract shapes and machine parts to establish the sense of movement, and use visual hierarchy to avoid being messy. All the design should be realistic and reliable.

Referrence:

Probability and its role in Civil Engineering

http://nptel.ac.in/courses/105105138/M1L01.pdf

Constructivism

http://architecture.about.com/od/20thcenturytrends/ig/Modern-Architecture/Constructivism.htm

Visual Hierarchy

http://www.swinburne.edu.au/design/tutorials/P-design/T-Basic-Design-Principles/ID-70/

Exp2 Final Submission

Axonometrics and Parallel Projection related to the architects

Axos

Ricardo: Contrast of large structure mass & Large void spans
Aldo: Decentralization and absence of boundary

Ricardo: Absence of Orientation

Aldo: Organized forms arranged in a labyrinthian way

Ricardo: Horizontal expansion vs verticality

Aldo: Unity and Harmonization of Overlapping geometry

Combinations (Parallel Projection)

Textures







LUMION PRODUCT

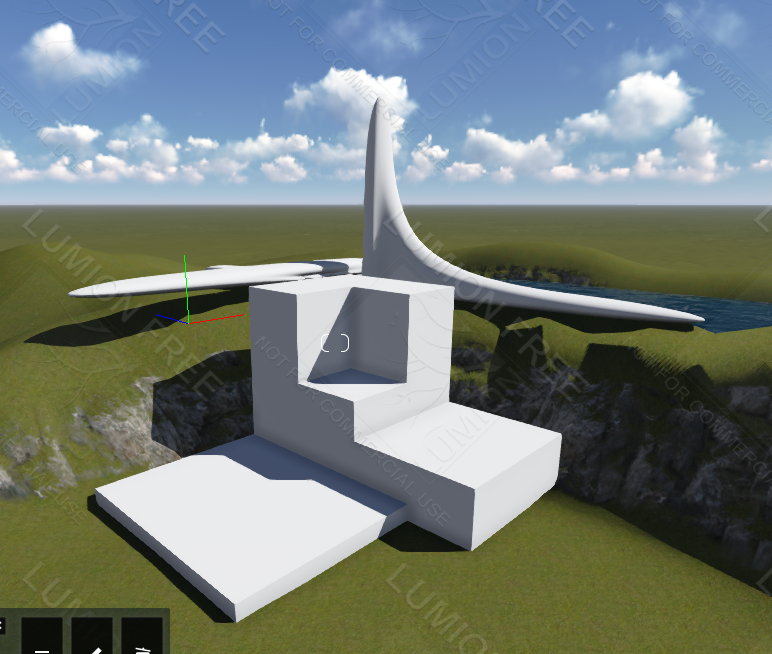

The original two concepts for this architecture are  Contrast of large structure mass & Large void spans + Decentralization and absence of boundary
which provide the electroliquid aggregation: A stable massive base uses void spaces to create platforms and meet a radiactive monument which freely spread without constraint.

  The monument 2 spread to all X,Y,Z axis as radiation and there is no boundary to disturb the consistency.

    A void space is created to contain the staircase which links to the meeting space.

  As a base, massive monument 1 indicates the stability of the whole construction.

Sketchup Model & Dropbox

Dropbox:
https://www.dropbox.com/sh/m0evbb2wfy1y65d/eGp1_ic3kh

Updated

Maybe another way to do..

Lumion Restart

This is the new design for the combo.

EXP2 WK1

Aldo Van Eyck

Organised forms arranged in a laybrinthian way

Link to 3D Warehouse

https://www.dropbox.com/s/0l1p14tc0m76tvw/Final%20Submission%21.skp

Final Submission

Inspired by bouncing balls and growing babbles, the following design of mine generated two studios and two exhibition areas of Stainway&Sons and Revival Cycle throughout 3 stories.

This is the first blueprint of the entire design, Top part is the MOTION for recycle cycles and S&S is with the word MOVE under the datum.

Stairs

From top to down, the material that was selected is the mixture of metal that the beauty of industrial world would be illustrated and the shape U turn could express the rapid movement or motion of motocycle. The initial idea of wooden handrail has not been adapted as the open space on the stair would be broken turning to a narrow tunnel.

As for the connection from bottom to top, the shape is a concave up arc. The smooth lines could indicate the elegance of the piano, moreover, the increasing gradient shows the growing difficulty with making world top pianos as same as be the most famous pianist.

Textures

LIGHT,AIRY,MATTE

The above three textures are the one in use in the model.

The first one named LIGHT was placed on two opposite walls in between area and above part respectively showing the speed and the motion of motobikes.

When the second one was repeatedly textured on the exhibition, a sense of clear generated.

The last one is gonna show the rough surface, namely, matte.

Display

Following are the display of the design work.

Section Exhibition Studio
